Accu-Dive Pro - Underwater Global Positioning System (GPS)

Long Beach Dive's Accu-Dive Pro product is a complete GPS receiver system designed specifically for underwater divers.

The Accu-Dive Pro has been engineered for use in many demanding professional and military underwater applications including: Search and Recovery, Navigation, Mapping, and Reconnaissance.

Composed of a large surface antenna float, dive flag, 70 feet (21 meters) of signal/umbilical cable (Optionaly to 175 feet (53 meters), and an underwater GPS receiver, the Accu-Dive Pro provides divers with a valuable tool for use in pre-dive planning, dive operations, and post-dive analysis.

The Accu-Dive Pro differs from the RECON-Pro in that it can also be equipped with a GPS signal amplifier and umbilical cable allowing for additional depth capability up to a maximum of 175 feet (53 meters).

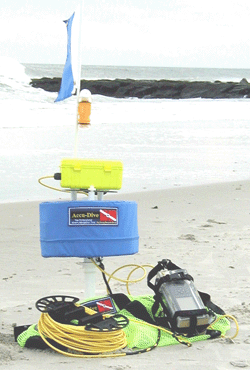

Accu-Dive Pro components shown

RECON-Pro GPS Receiver

Accu-Dive Pro Components

The Accu-Dive Pro is a complete GPS system , and can come additionally equipped with a GPS signal amplifier allowing for additional depth capability up to 175 feet (53 meters).


  • Integrated Garmin GPSMAP 172C GPS receiver with a 200Mhz processor allowing for almost instantaneous screen refresh.
  • WAAS (Wide Area Augmentation System) Compatible for < 3 meter position accuracy. (EGNOS in Europe and MSAS in Japan).
  • Large 3.2 " (81mm) X 3.2 " (81mm) High Resolution COLOR LCD Display.
  • Easy to use "stylus" based GPS receiver keypad.
  • Can be used to a depth of 175 feet (53 meters).
  • Large surface float with International Dive Flag to alert surface traffic of the presence of a diver in the water.
  • Chart plotter with integrated data card reader for uploading detailed maps of the dive area.
  • PC connection for use with pre-dive planning and post-dive analysis software.
  • Rechargeable 12-volt battery and charger.

Accu-Dive Pro Keypad and LCD Screen

The Accu-Dive Pro comes equipped with a unique underwater keypad and large 3.2 " (81mm) X 3.2 " (81mm) High Resolution COLOR LCD screen.

These allow a diver to easily select any of the GPS receiver functions, using a handheld stylus, while submerged on a dive.

Accu-Dive Pro LCD with BlueChart

Accu-Dive Pro Keypad

Accu-Dive Pro Keypad & Stylus Demonstration

Product Options (Charts)

The Accu-Dive Pro comes fully equipped to be utilized right out of the box.

In addition to the base system, customers may also purchase detailed charts of the waterways where the Accu-Dive Pro will be utilized.

Garmin's MapSource BlueCharts are available for a wide range of worldwide locations.

The Accu-Dive Pro has a slot located on the bottom of the receiver where a data card can be inserted.

read more on optional Charts & Software

RECON-Pro LCD with BlueChart Software

Product Options (Umbilical Cable)

The Accu-Dive Pro base model comes equipped with 70 feet (21 meters) of umbilical cable.

Because the Accu-dive can also be equiped with a GPS signal amplifier, we can add additional length of umbilical cable up to a total of 175 feet (53 meters).

When ordering please select the total length of umbilical cable you require.

Accu-Dive Pro Umbilical Cable / Reel

AccuDive Pro Component Pictures

Select the Accu-Dive Pro picture below for a slide show of all components.

Accu-Dive Pro Components

Accu-Dive Pro Support Documents

Accu-Dive Pro Component Specifications
Accu-Dive Pro Product Line Card
Accu-Dive Pro User Manual

Accu-Dive Pro Pricing

The Accu-Dive Pro, equipped as described above, is currently priced at:

Base Accu-Dive Pro Unit
(with 70 feet (21m) of Umbilical cable)
US$ 3100.00
Accu-Dive Pro Product Options
GPS Signal Booster US$ 300.00

Call us to discuss your requirements and to order.

Extra Lengths of Umbilical Cable /per 10'

(Up to a max of 175'(53m).

US$ 20.00
Garmin BlueChart CDROM 1 area license See Charts Page
Garmin DataCard 64MB See Charts Page
Garmin PC DataCard Writer USB See Charts Page
